Polishing Station
Dedicated polishing station for micro- and nanoelectrodes.

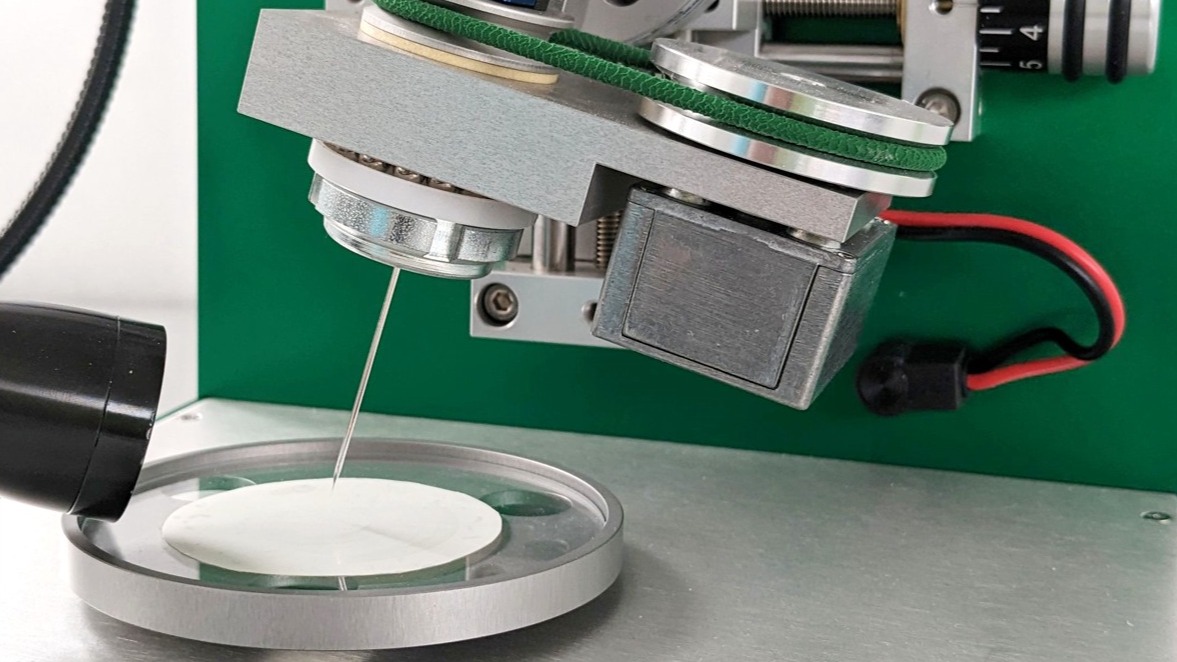

Polishing Station: design for micro- and nanoelectrodes
The polishing station is designed for the preparation and finishing of microelectrodes and nanoelectrodes, featuring precise mechanical control and reproducible polishing performance. The independent rotation of both the grinding plate and the electrode body enables uniform polishing across a wide range of electrode geometries and dimensions.
A two-axis micromanipulator allows flexible positioning of the electrode on the grinding surface, while the polishing angle can be adjusted continuously from perpendicular to tilted orientations. The modular design also enables quick exchange of polishing materials for different preparation stages and surface requirements.
A built-in light source improves visibility during the alignment and polishing procedures, and the system can be optionally combined with our Option Video to enhance the monitoring and control of the process.
Key Features
- Independent rotation of grinding plate and electrode body
- Two-axis micromanipulator for flexible electrode positioning
- Perpendicular and adjustable polishing angles
- Integrated illumination for improved visibility
Probes & Consumables
A complete selection of materials and electrodes for precise surface finishing and scanning electrochemical applications.
Probes
Ultramicroelectrodes
Ultramicroelectrodes in gold, platinum, carbon fiber, and nickel for versatile research applications, including corrosion science, catalysis, and bioelectrochemistry research.
Nanoelectrodes
Platinum nanoelectrodes optimized for high-resolution electrochemistry and shearforce integration.
Light-Fiber-Integrated Microelectrodes
Combine scanning electrochemical microscopy with controlled local illumination for spatially resolved photoelectrochemical measurements on functional surfaces.
Polishing Consumables
Polishing Paper for Polishing Station
Set of aluminum oxide polishing papers designed for use with the polishing station, featuring 5 µm, 1 µm, and 0.3 µm grain sizes for sequential polishing steps and diameter of approx 73 mm.

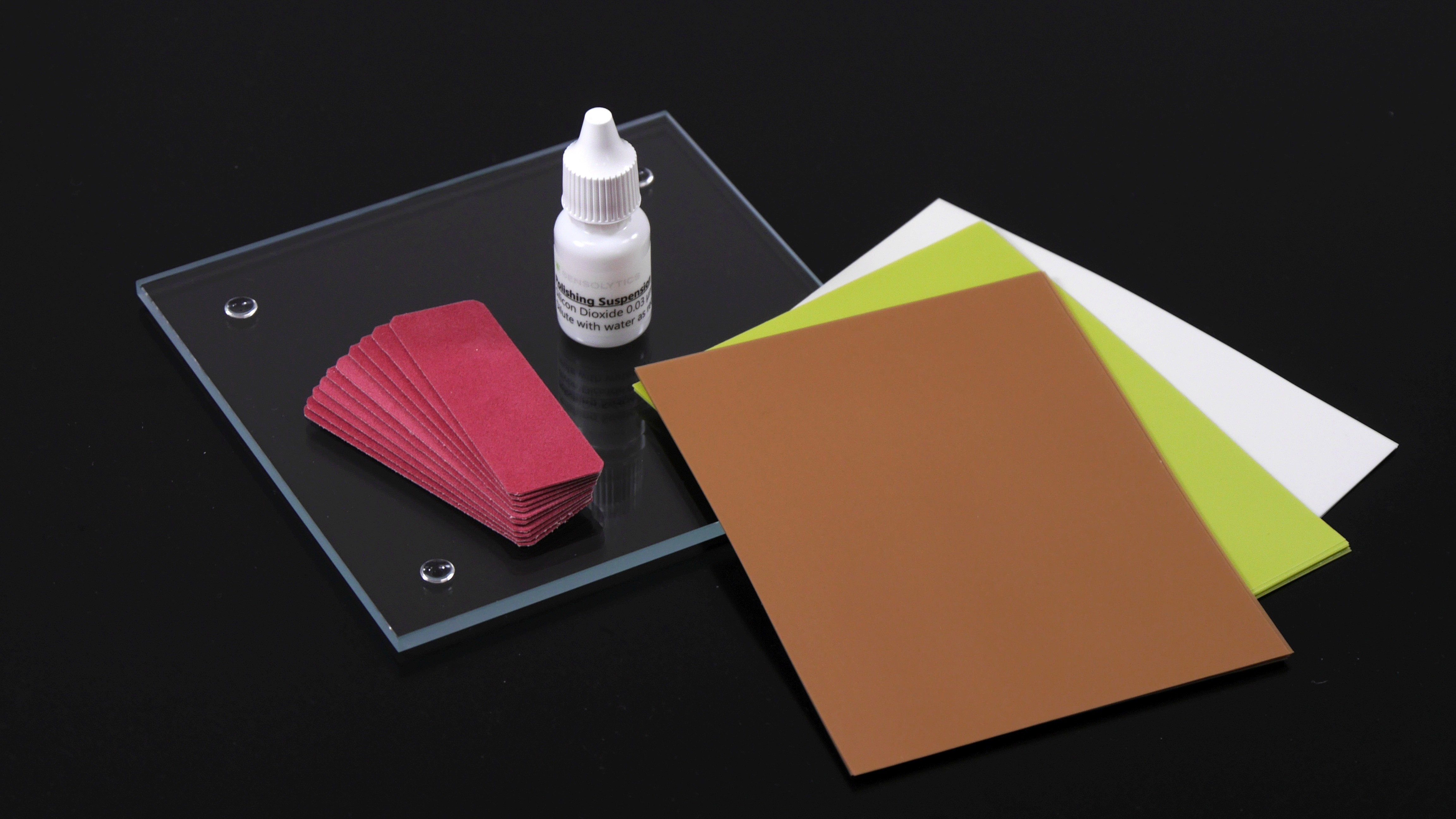

Electrode Polishing Set
Complete solution for the manual cleaning and preparation of microelectrodes. Include glass plate, aluminum oxide polishing papers, colloidal silicon dioxide suspension, and polishing cloths.
Polishing Suspension and Cloths
Colloidal silicon dioxide suspension (0.03 µm grain size) and polishing cloth set for gentle surface cleaning and final polishing steps.
